توضیحات دستگاه دریپ کافی
توضیحات فنی دستگاه دریپ کافی
Equipment Specification
| 1 | Measuring range | Volume method 5 – 10 g ( 15 ~ 33 ml ) |
| 2 | Inner bag size | L:50~75mm : W:50~90mm |
| 3 | Outer bag size | L:86~120mm : W:75~100mm |
| 4 | Bag type | 3-side seal bag |
| 5 | Film material | drip fitter bag |
| 6 | Packing Speed | 20-30 bags/minute |
| 7 | External Dimensions | 1250*760*2150 mm |
| 8 | Power Supply | AC220V / 50Hz / 3.7kw |

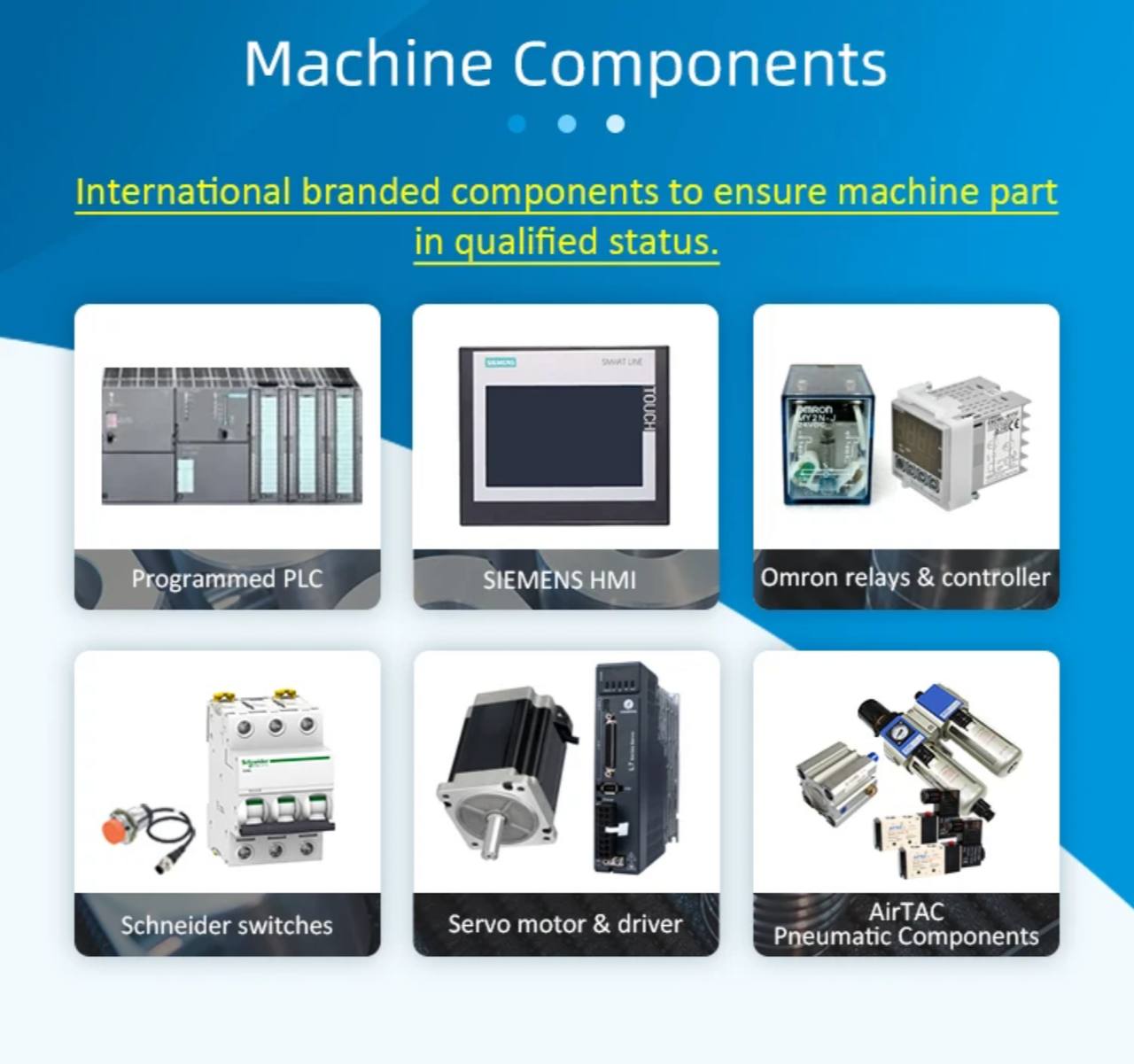

Electronic Components
| No. | Component name | Origin | Brand |
| 1 | Touch screen | Germany | Siemens |
| 2 | PLC | Japan | Omron |
| 3 | Step motor | China Mainland | LeiSai |
| 4 | Servo motor | China Mainland | HuiChuan |
| 5 | Temperature controller | China Mainland | HuiBang |
| 6 | Relays | China Mainland | Megir |
| 7 | Photocell | China Mainland | KeTe |
| 8 | Ultrasonic | Taiwan | MingXi |
| 9 | Switches | China Mainland | ZhengTai |
| Measuring range | 5-10g (15-30ml) |
| Inner bag size | L:70-74mm * W:90mm |
| Outer bag size | L:120mm * W:100mm |
| Packing speed | 20-30 bag/min |
| Power supply | 220V 50/60Hz, 4KW |
| Air supply | 0.6Mpa/min |
| Machine size | 1250*750*2000mm |
| Machine weight | 550kg |
